In: Accessories

MD Kit for bike with thru-axle

90,00160,00

With the MD KIT for thru-axle bikes, you can use the MagneticDays smart trainers with all bikes with thru-axle. The universal pin is supplied with a set of adapters that allow you to select the most suitable combination for the type of your bike (142 or 148 mm rear carriage).

Now the MD thru-axle kit is even stronger and safer! Thanks to the internal fitting system of the threaded coupling, the external bushing disappears and the risk of scratching the frame surface is a distant memory.

The plug-in bushing is available in four different configurations* (thread pitch):

  • M12 x 1.00 mm
  • M12 x 1.25 mm
  • M12 x 1.50 mm
  • M12 x 1.75 mm

*The kit comes with the complete set of bushing

The kits are compatible with MD JARVIS B series models (Serial Number JB) and can be used with MD JARVIS A series models also (Serial Number JA and SP) making a modification to the smart trainer (by our laboratory). The price of € 160,00 includes component replacement and shipping costs.

Clear
90,00160,00
model MD JARVIS JB series MD JARVIS JA series
Clear selection

MagneticDays roller through shaft mounting system kit
External bushings for 142/148 mm* bike rear carriage

4 types of internal rear fork coupling (thread pitch 100/125/150/175)



* The replacement of the pair of bushings requires the use of 18 mm and 20 mm box wrenches

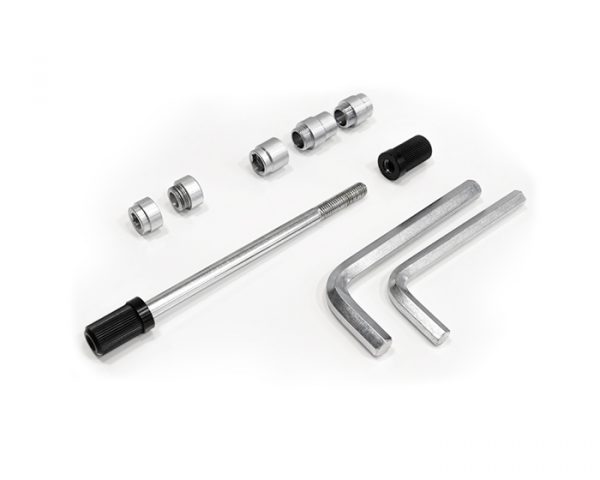

Thru-axle block HandBook

Through shaft

Trainer connection bushings to the 142mm / 148mm rear carriage chassis

Internal bushing pitch 1.00 / 1.25 / 1.50 / 1.75

Locking tool

Set of bushings (adapters)

8 mm Allen wrench
